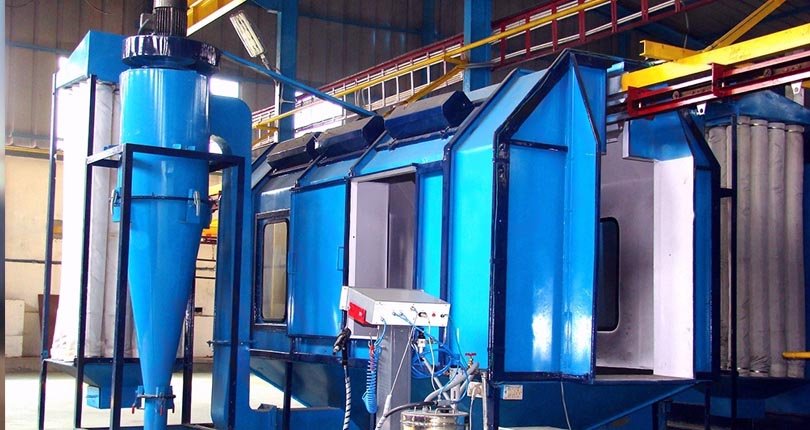

Conveyorised powder coating booth
Conveyorised paint booths are used for painting moving components on conveyor systems for continuous production lines. These conveyorised paint booths could be dry or wet type as required. The booths are suitable for robotic applications also. Components entry & exit provisions are made with side cutouts for easy movement.
We provide a total solution to our customers for finishing their products. Dry or wet type painting is used for high quality finishes. Conveyorised plants reduce material handling manpower, and improve quality & production.
Features
- Optimum performance
- Less maintenance
- Excellent functionality
- Smooth interior finish for easy cleaning
- Ergonomically designed for operator convenience
- Connected to high efficiency cyclone recovery units for powder recovery
- Uniform air flow velocities across all openings in the booth
- Clean work environment
Specifications
- Ensure powder recovery up to 95-96 % depending on particle size distribution in the powder
- The powder coating booth enclosure is made from 18 SWG GI Sheets.
- The cyclone recovery unit couples to a powder coating booth by a joint powder suction ducting.
- The cyclone made from 18 SWG GI Sheets and the cyclone stand made from heavy duty angle.
- The closed Sheet Steel enclosure system calls a bag filter. We recommend the powder collection unit fitted after the cyclone recovery unit.
- It is controlled to spread out the powder in air which is powdered throughout by the cyclone.
