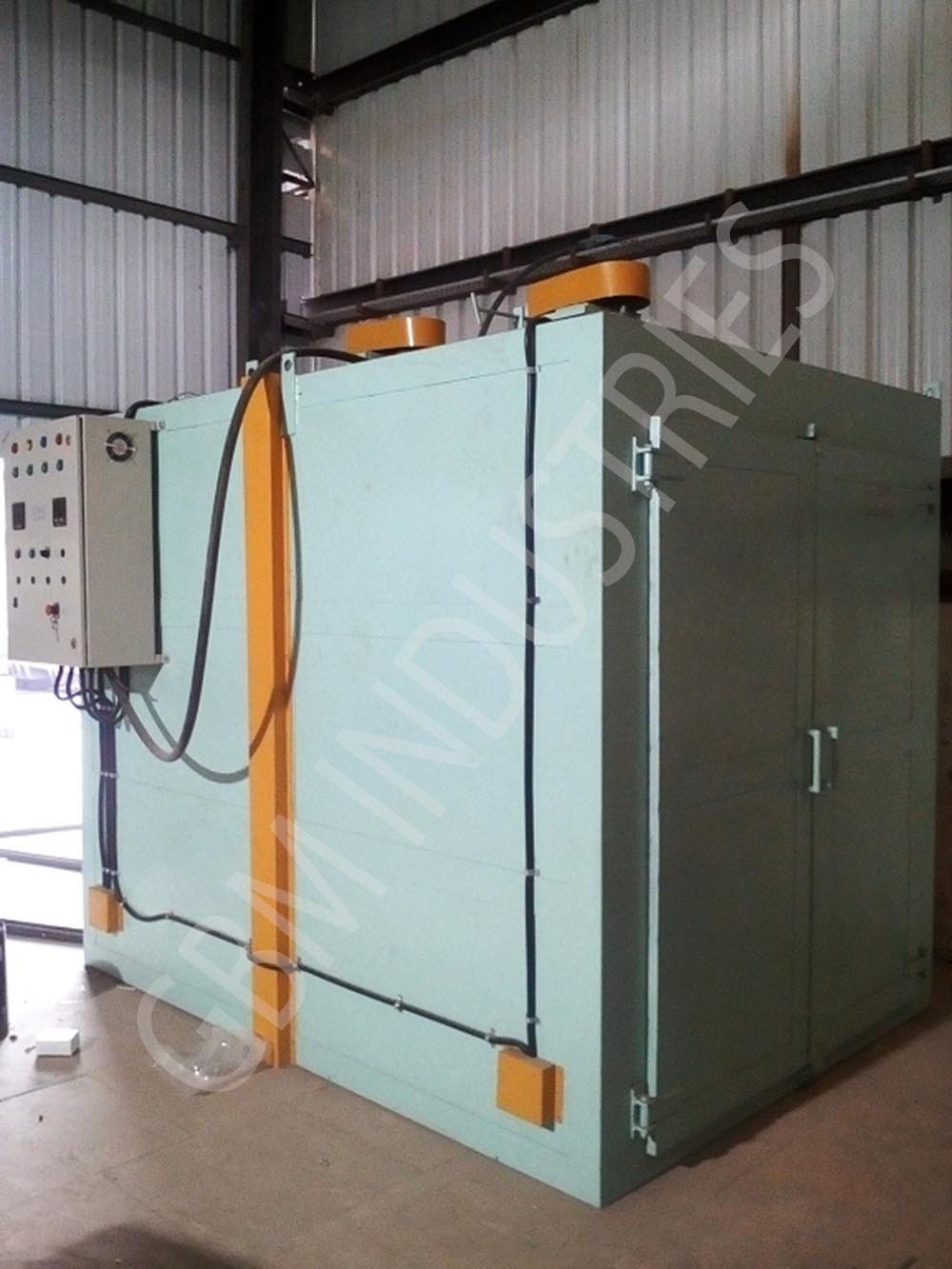

Lacquer Curing Oven
GBM offers an extensive range of Industrial Lacquer Curing Ovens for curing lacquer before and
after metalising on glass, plastic and metal articles. These ovens are specially designed for Vacuum
Metallising Industry and comprehensively engineered to incorporate the latest features.
Process of Lacquer Curing
- All plastic and metal articles and some glass articles require a base coat of lacquer to provide adhesion of metallising.Lacquer can be done by dipping the substrate in a tank of lacquer or by spraying the same with a spray gun.After applying lacquer, it is dried in an oven at a suitable temperature, depending on the lacquer used, for particular time-period. Load the articles on trolleys/trays, transfer the trolley/tray in the oven, and close the door of the oven. Select the temperature required on the digital temperature indicator cum controller provided in the control panel. Select the time to cure the lacquer on the digital timer provided. Press fan-ON button to start the fans then press heaters- ON button to start the heaters of the oven. After the selected time elapsed, heaters will OFF.Same process will apply for curing the top-coat.
Features
- Digital Temperature Indicator cum Controller
- Digital Timer, 0-999 minutes
- Heaters – standard 1000 W rating, strip type
- Switches, latching type with illuminating front
- Door Limit Switch
- Features
- Fan Motors – 0.5 HP, 2880 RPM, Direct Driven
- Inter locking for safe operation
Typical Application
- GBM ovens can be used in various industries but these ovens are specially designed to be used in Vacuum Metallising Industry for curing base-coat and top-coat of lacquer on glass, plastic and metallic articles.
