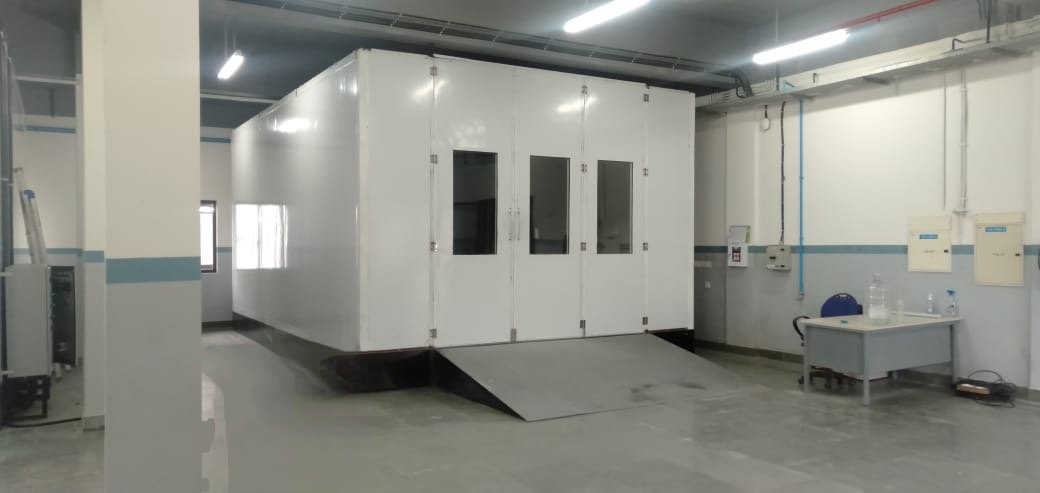

Spray and Bake Booth
The Spray and Bake booth offers the ideal controlled environment for your finishing, curing or drying requirements and prevents these processes from contaminating other areas. They can be designed to provide differing degrees of cleanliness, heating systems, or air conditioning when required. A spray booth extraction system can be incorporated for paint spraying applications or a simpler extractor can be fitted when used as a drying enclosure.
A fully automatic air circulatory system can be incorporated for the higher temperature curing applications. Several rooms with different facilities can be interconnected to provide a ‘suite’ for preparations, finishing and curing.
Standard Options:
- Dry Filter or waterwash extraction systems: side wall extraction or downdraught airflow system with griddled floor.
- Galvanized or stainless steel or painted surface finishing.
- Filtered shop air inlet system or pressurized air replenishment or fully integrated heated air replacement system with controls.
- Single skinned or double skinned insulated steel manufacturer.
- Gas, electric, oil or steam heating mediums, direct or indirect.
- Air conditioning system with cooling and humidity control.
- Roller or sliding shutter doors or swing doors.
- Various light fittings and window systems.
Power Source Options:
- Main Power Supplies 415 Volt, 50 Hz, 3 phases, 4 wire A.C. system only.
Heat Sources
- Electric
- Gas (Natural or LPG)
- Fuel Oil
- Steam
- Other Fuel Mixtures
Specifications
- Maintenance door is bolted.
- Modular design ensures easy installation and expansion.
- ALL MS Parts are Two coats of epoxy primer and two coats of enamel finish paint.
- ALL GI Parts are All GI Panels are Powder Coated.
- Temperature Ranges up to 80°C.
